Industruino



Industruino is a fully featured Arduino Leonardo compatible board housed in a DIN-rail mountable case + prototyping area + onboard LCD + membrane panel. With this product you will be able to permanently install your Arduino application in no-time.

Whether you use it for automation projects, data loggers or an interactive art installation, Industruino offers you ruggedness, plenty of features and low cost.

IND.I/O (6.5-32V)


IND.I/O is the Arduino-compatible equivalent of a PLC. The prototyping Baseboard of the standard Industruino is replaced by a highly integrated industrial I/O interface board. This interface board offers 8ch 24V I/O, 4ch 0-10V/4-20mA 18bit ADC, 2ch 0-10V/4-20mA 12bit DAC, isolated RS485 transceiver, isolated power zones.

The board is supplied with Arduino libraries, allowing you to easily interface with industrial level sensors and actuators, using your favorite software tools.

Ethernet


The Ethernet expansion module clicks onto the DIN-rail next to the Industruino and connects via the IDC expansion port. The module is based around the Wiznet W5500 controller chip. On top of that a Micro-SD card and non-volatile FRAM chip are featured, giving you full flexibility in terms of data storage options.

 A range of example code is provided, which will enable you to very quickly build an internet connected device.





   Architecture

  ....................................................

_

Main Controller Board

The main controller board is the brain and interface of Industruino, hosting the Atmega32u4 microcontroller and LCD screen. All signals connect from this controller board via a 40pin FPC cable to the baseboard.

PROTO Baseboard

The standard Industruino comes with this prototyping baseboard. It offers you plenty of space and flexibility to add your own components.

EXP Baseboard

The EXP Baseboard stands for "Expansion". Similar to the proto baseboard it has a large prototyping area but it adds an IDC expansion port and a 7-28Vin 5V/2A voltage regulator.

IND.I/O Baseboard

The IND.I/O Baseboard stands for "Industrial level I/O". The board offers an abundance of interface options, and has isolated power supplies for each of its three functional zones.

_

_

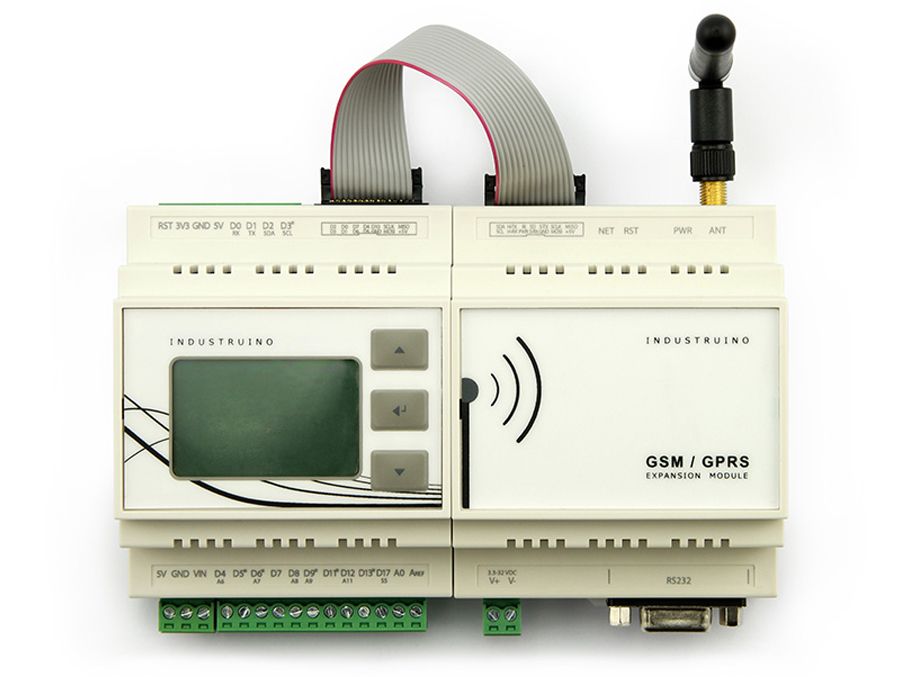

External DIN-rail expansion module

The IDC expansion port on the EXP and IND.I/O Baseboards enable you to connect to external communication and interface modules such as our Ethernet expansion module.




 Industruino



   Description

 .....................................................

 Industruino is great in any situation where you want to give your Arduino based project a permanent home, which is rugged (no more dangly wires) and affordable.

 Industruino aims to give tinkerers/makers the means to quickly install an Arduino based solution anywhere they previously thought of doing so, but had resisted to sacrifice a precious development board.



   Applications

  .....................................................

- Automation
- Product integration
- Research projects
- Interactive installations
- Rapid prototyping of electronics
- Interactivity/electronics teaching







Industruino is an Arduino compatible board housed in a DIN-rail mountable casing. The system is split into two PCB boards, the main control board at the top and an empty prototyping board at the bottom. The two boards are connected to each other with a FFC cable.

By default all I/O pins are routed to the detachable screw connectors on the bottom board. These connections can be re-routed, for use inside on the proto-board, by removing the 0Ω resistors.





    Specifications

  ........................................................

  • Atmega 32u4 microcontroller
  • Operating Voltage 5V
  • Input Voltage: 7-12V
  • Digital I/O Pins: 17
  • PWM Channels: 6
  • Analog Input Channels: 7
  • DC Current per I/O Pin 40 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 32 KB of which 4 KB used by bootloader
  • SRAM 2.5 KB
  • EEPROM 1 KB
  • Clock Speed 16 MHz
  • UC1701 based 128x64 LCD
  • 3 button membrane panel connected to analog input A5.
  • LCD backlight PWM controlled using output D13. (detachable using a jumper).









   Pinout Diagram

 ...........................................................

View Industruino in Store>>

View Industruino EXP in Store>>




 IND.I/O  Industrial Input/ Output Baseboard



   Description

 .....................................................

 This Baseboard is an interfacing solution to bridge the gap between Arduino compatibility and the world of robust industrial sensors and actuators. All field peripherals are isolated from the microcontroller via digital isolators and communicate via i2c protocol. The Baseboard connects to the existing Industruino Topboard via the usual 40pin FPC connector. Existing users of Industruino can thus swap their existing prototyping Baseboard with this IND.I/O Baseboard.

The board includes 8ch 24V I/O, 4ch 0-10V/4-20mA 18bit ADC, 2ch 0-10V/4-20mA 12bit DAC, isolated RS485 transceiver, isolated power zones.

The board is supplied with Arduino libraries, allowing you to easily interface with industrial level sensors and actuators, using your favorite software tools.



   Applications

  .....................................................

- Interfacing with industrial sensors and actuators
- Acting as slave or master modbus device in a network.
- Data logging
- Product integration



   Specifications

  ........................................................

Digital field section

  • Input Voltage: 6.5-32V
  • Digital I/O Channels: 8
  • Digital input voltage range: 3.3-32V
  • Digital output voltage range: Tied to Vin (6.5-32V)
  • Output current per digital pin 2A
  • Total output current: 3A (PTC fused)
  • Fully isolated from MCU and analog side (2kV isolation)
  • Half Duplex RS485 transceiver

Analog field section

  • Analog Input Channels: 4
  • Analog Output Channels: 2
  • Analog levels: 0-10V/4-20mA (switchable in software)
  • Analog Input resolution: 18 bit
  • Analog Output resolution: 12 bit
  • Fully isolated from MCU and digital side (2kV isolation)



































   Pinout Diagram

 ...........................................................



   Example Interface Options

 ................................................................................



View IND.I/O in the Store>>


Ethernet Module

    Description

 .....................................................



This DIN-rail mountable module adds network connectivity to your Industruino. It easily connects to the Industruino EXP or IND.I/O kit through the 14p IDC expansion port.

The module is complemented by a Micro-SD card slot and 8KB of non-volatile FRAM memory. The SD memory is ideal for storing large files, such as used in data logging projects. The FRAM memory is ideal for fast and repeated storage of small values such system status and configuration data. The FRAM memory is non-volatile, so it enables you to keep data during power cycling without needing a battery backup.



   Applications

  .....................................................

- IoT devices (Internet of Things)
- Data logging
- Remote system management

A range of example code is provided, which will enable you to very quickly build a product that is internet connected. We have also included code that can be used to publish your sensor data to the Emoncms.org platform for easy visualisation. Using this sample code and our Industruino + Ethernet package you can have your sensor data available online within minutes.













View Ethernet module in Store>>

View Industruino+Ethernet bundle in Store>>




Industruino Platform



 Industruino is ideally suited as a platform to build customer specific products. The open source nature of the hardware and software allow you to very quickly modify and built your system. After your customisations have been verified in a prototype we can produce the customised parts and ship your fully finished product. Please contact us for project specific questions.

You can find the pcb design files of the baseboard on the support page. These files can then be used as a template for designing your custom I/O board.

We also offer a customisation service for the membrane button panel of Industruino, thus giving you the opportunity to brand your product.
